주요특징
  • t2.png

MC4Unt

64 Axis All-In-One EtherCAT® Master Controller with Integrated Servo Drives

>SPiiPlusNT-HP : High Performance EtherCAT master
- with 4 or 8 Integrated Servo drives for applications with up to 64 network axes

>SPiiPlusNT-LT : Economical Performance EtherCAT master
- with 4 or 8 Integrated Servo drives for applications with up to 64 network axes

>SPiiPlusNT-LD : High performance EtherCAT master Linear Drive controllers
- with 4 or 8 Integrated Servo drives for applications with up to 64 network axes

  • line2.png

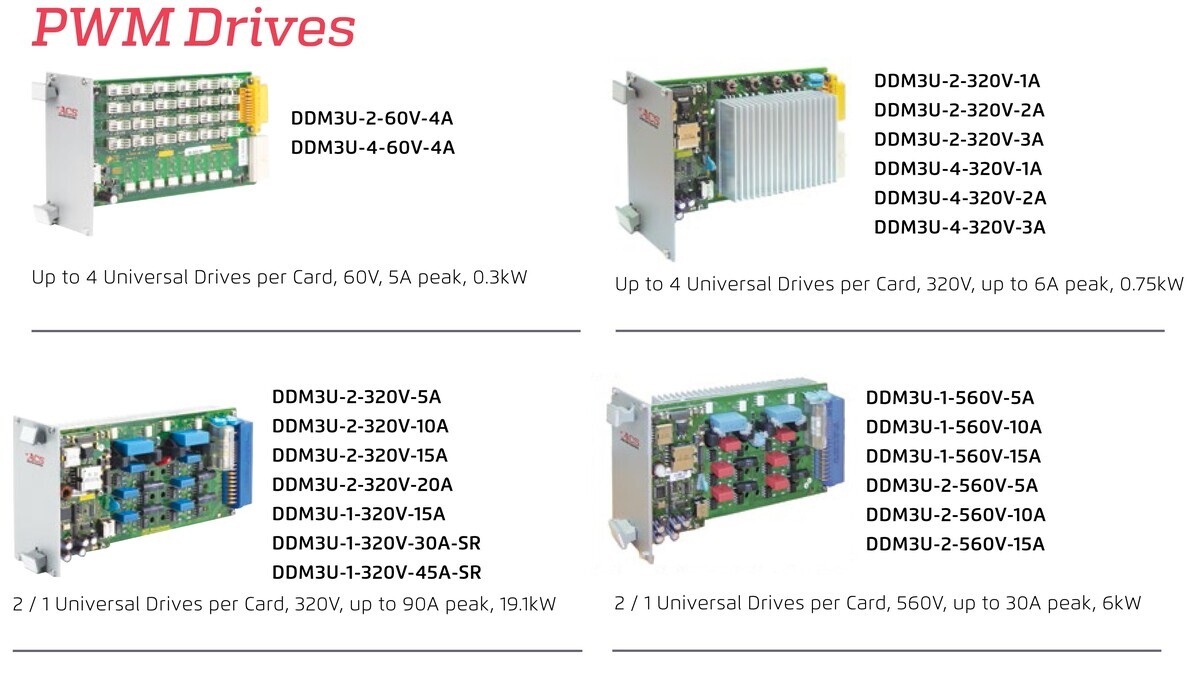

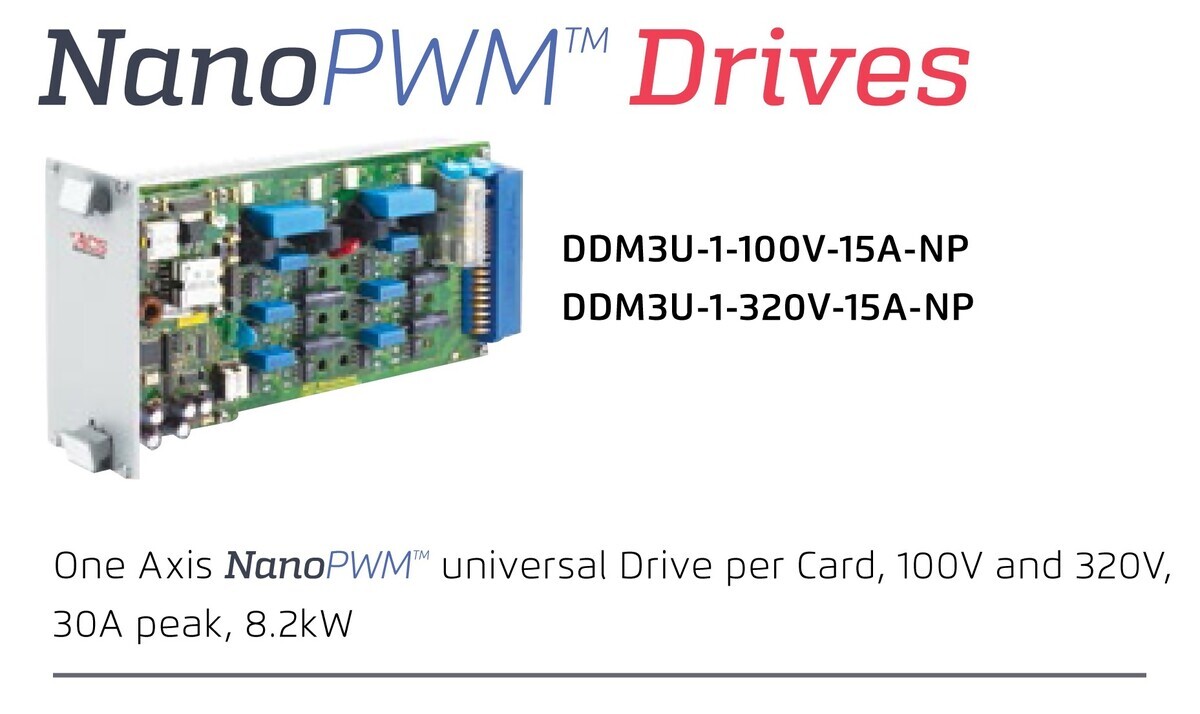

> NanoPWM Drive - Sub-nanometer standstill jitter
- nanometer tracking error and optimal velocity smoothness
> Wide power range - 100W to 6kW
> Open and Closed loop step motor control with high resolution micro steps

  • MC4U_PWM_table.jpg

  • line2.png






Logic Supply Input Specification
- Nominal input voltage : 24Vdc
- Maximum input power : 144W
- Maximum input current : 5.5A

Standards and Environment Specification
- All power supplies are CE(EMC, Safety) and UL certified and RoHS compliant

Ambient Temperature
- Operating range: 0 to + 40°C
- Storage and transportation range : -25 to +60°C
- Humidity(operating range) : 20% to 95% non-condensing

  • fline2.png
